In the entire semiconductor chain from chip design to end products, semiconductor packaging equipment serves as an indispensable key bridge – it transforms fragile bare chips into finished products that can work stably, directly determining the reliability, performance, and service life of semiconductors. Whether it is the processor in a mobile phone, the core chip of an LED lamp, or the power module of a new energy vehicle, all need to be processed by packaging equipment before entering the market. This article will analyze the core value and future direction of semiconductor packaging equipment from three dimensions: classification, key equipment, and development trends.

I. Two Core Categories of Semiconductor Packaging Equipment

Semiconductor packaging equipment is not a single machine but a cluster of equipment covering the entire process of wafer processing → chip packaging → testing. According to different processes, it can be divided into two major categories:

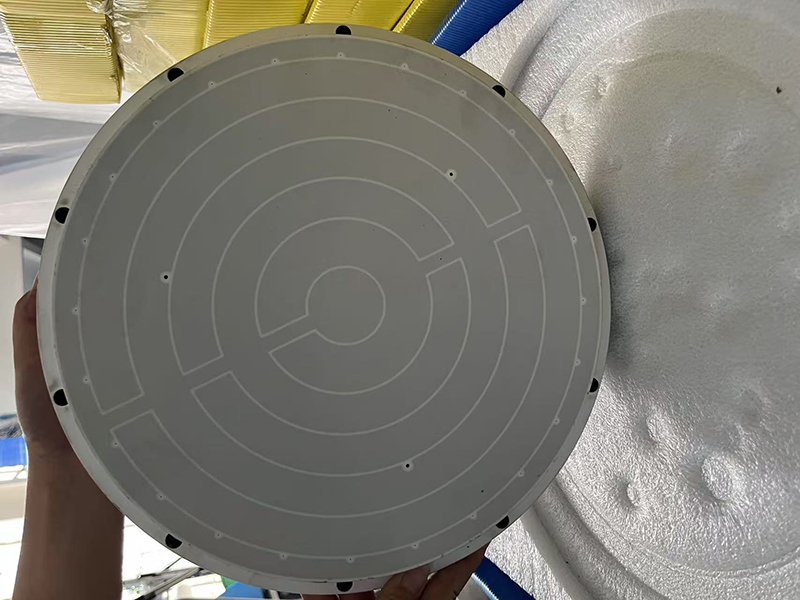

1. Front-end Manufacturing Equipment: Basic Guarantee for Wafer Processing

Front-end equipment focuses on preliminary processing of wafers, aiming to process raw wafers into a state suitable for packaging. Common equipment includes thinning machines (thinning wafers to meet subsequent packaging thickness requirements), polishing machines (improving wafer surface flatness), etc. These equipment directly affect the packaging feasibility of wafers and serve as the foundation for subsequent processes.

2. Back-end Packaging and Testing Equipment: Last Mile for Chip Formation

Back-end equipment is the core link of packaging, responsible for converting chips on wafers into final products. It mainly includes die bonders, molding machines, dicing saws, etc., covering the entire process of chip attachment → packaging protection → separation testing, directly determining the yield and performance of finished products.

II. Three Key Semiconductor Packaging Equipment: Function and Value Analysis

In the back-end packaging and testing process, three types of equipment are top priorities, and their performance directly affects packaging quality:

1. Die Bonder (Placement Machine): Precise Connector Between Chips and Substrates

The die bonder is the first step of packaging – through a high-precision positioning system, it precisely attaches chips to substrates or packages using silver glue or adhesives. The key to this step is alignment: if the chip position is offset, it will lead to electrical connection failure, poor heat dissipation, or even product scrapping. Therefore, the precision (such as micron-level positioning) and stability of die bonders directly determine the packaging yield. Currently, die bonders are widely used in fields such as LEDs and logic chips, serving as the core hub of the packaging process.

2. Molding Machine: Protective Cover Maker for Chips

The role of the molding machine is to put a protective coat on the chip – injecting packaging materials such as epoxy resin into a mold, which, after curing, wraps the chip to isolate it from external moisture, dust, and mechanical impact. This protective coat not only extends the chip's lifespan but also optimizes heat dissipation (allowing faster heat conduction during chip operation) and facilitates standardized assembly (such as chip modules in mobile phones). Whether it is ordinary lead frame packaging or high-end 3D NAND flash memory and processor packaging, molding machines are required.

3. Dicing Saw: Division Expert from Wafer to Chip

The dicing saw is responsible for cutting the entire wafer into individual chips, being the last step of packaging. Currently, the mainstream is the dicing saw (achieving high-precision cutting through a high-speed rotating), while laser dicing saws have limited applications due to the heat-affected zone (high temperatures generated during cutting can damage chips). With the upgrading of semiconductor materials (such as thinner and more brittle wafers), modern dicing saws have integrated functions such as machine vision technology (automatically detecting wafer defects and avoiding them) and ultrasonic-assisted cutting (reducing mechanical stress and protecting chip structures), greatly improving cutting precision and yield.

III. Future Trends of Semiconductor Packaging Equipment: Addressing Challenges and Embracing Opportunities

With the evolution of semiconductor technology (such as 3D packaging and heterogeneous integration) and the expansion of downstream applications (such as AI, 5G, and new energy vehicles), packaging equipment is facing three major trends:

1. High Precision and Intelligence: Meeting Complex Chip Requirements

Future chips will be more small, dense, and complex (such as 3D stacked chips), requiring packaging equipment to have nanometer-level positioning accuracy and multi-dimensional coordination capabilities (such as handling multiple chips simultaneously). At the same time, intelligent technologies (such as machine learning to optimize cutting paths and machine vision to automatically adjust parameters) will become standard, further improving efficiency and yield.

2. Green and Environmental Protection: Inevitable Path for Sustainable Industry Development

With the advancement of the dual carbon goal, packaging equipment needs to transform towards low energy consumption and low pollution. For example, optimizing the heating process of molding machines (reducing energy consumption), adopting adaptive equipment for environmentally friendly packaging materials (such as die bonders for lead-free solder), or reducing waste through recycling cooling media will become core competitiveness for equipment manufacturers.

3. Industrial Chain Collaboration: Solving New Packaging Challenges

New packaging technologies (such as fan-out packaging and Chiplet) require in-depth cooperation between equipment manufacturers, chip design, and manufacturing enterprises. For instance, Chiplet requires equipment to support multi-chip splicing, which requires equipment manufacturers to understand design needs in advance and optimize positioning and attachment functions. In the future, the linkage of equipment-design-manufacturing will become normal, jointly promoting innovation in packaging technology.

Conclusion

Semiconductor packaging equipment is the unsung hero of the semiconductor industry – although it does not directly appear in end products, it determines the product's performance and lifespan. From classification to key equipment and then to future trends, every upgrade of packaging equipment is to meet new demands of downstream applications (such as high computing power of AI chips and high reliability of new energy vehicles). With the continuous evolution of semiconductor technology, packaging equipment will continue to play a core supporting role, promoting the implementation of more high-tech applications.

For the semiconductor industry, paying attention to the development of packaging equipment is equivalent to the future of the industry – after all, without good packaging, even the most advanced chips cannot realize their value.
