In the rarefied world of high and ultra-high vacuum (HV/UHV) technology, the components that control gas flow and isolate process chambers are not mere plumbing accessories—they are precision instruments whose performance directly determines process quality, throughput, and yield. Among the various valve architectures available to the vacuum engineer, the vacuum butterfly valve has earned a position of prominence through its unique combination of high conductance, compact form factor, rapid actuation, and robust sealing reliability. From semiconductor load-lock chambers to particle accelerator beam lines, from thin-film deposition systems to space simulation chambers, the vacuum butterfly valve provides an elegant solution to the fundamental challenge of controlling gas flow while maintaining part-per-billion levels of leak integrity.







To appreciate the butterfly valve's advantages, one must understand the concept of conductance—the measure of a vacuum component's capacity to allow gas to flow through it under a pressure differential. In the molecular flow regime (typically below 10^-3 mbar, where gas molecules interact with walls more than with each other), conductance is determined purely by geometry. Any restriction in the flow path reduces the effective pumping speed delivered to the process chamber.





1/S_eff = 1/S_pump + 1/C



A valve with poor conductance creates a bottleneck that starves the chamber of effective pumping, extending pump-down times and compromising base pressure. Gate valves, while offering excellent sealing, impose a significant conductance penalty due to their tortuous internal flow path and the gate mechanism itself occupying cross-sectional area. The butterfly valve, by contrast, positions its disc edge-on to the flow when open, presenting a minimal cross-sectional obstruction and maximizing the clear bore diameter. This translates directly into faster chamber evacuation and higher effective pumping speeds.









Leak Rate Requirements: For HV applications, valves must achieve leak rates on the order of 1 x 10^-9 mbar·L/s or better, as verified by helium mass spectrometer leak detection. This demands sealing surfaces machined to sub-micron flatness and finished to Ra 0.4 µm or better, combined with elastomer seals of consistent cross-section and minimal outgassing characteristics.



Hard-to-Hard Sealing for UHV: In UHV systems operating below 10^-9 mbar and requiring bakeout at 250°C, elastomer seals are no longer acceptable—they outgas excessively and degrade at bakeout temperatures. UHV butterfly valves employ metal-to-metal sealing, where a precision-lapped metal disc seats against a polished metal bore. The seal is achieved not through elastomeric compliance but through the plastic deformation of a softer metal (often nickel or gold-plated) against a harder seat, creating an intimate, leak-tight interface. These valves require far higher closing forces and more sophisticated actuator mechanisms but deliver the ultra-clean vacuum environments essential for surface science, molecular beam epitaxy, and accelerator systems.



Elastomer-Sealed Valves for Corrosive Processes: Many semiconductor processes involve corrosive gases such as chlorine, boron trichloride, and hydrogen bromide. An elastomer-sealed butterfly valve specified for these applications must use sealing materials with proven resistance to attack. FFKM (perfluoroelastomer) is the standard for the most aggressive environments, while specialized FKM grades may suffice for less demanding chemistries. The valve body material itself—typically stainless steel 316L—must also resist corrosion and must be electropolished to minimize surface area and particle adhesion.









Pneumatic Actuation: Double-acting or spring-return pneumatic cylinders provide rapid open/close times (often under one second) and are inherently safe for use in flammable and explosive environments. Position indicators (reed switches or proximity sensors) provide positive confirmation of valve state to the process control system. Solenoid pilot valves, often integrated directly onto the actuator, allow for direct PLC control.



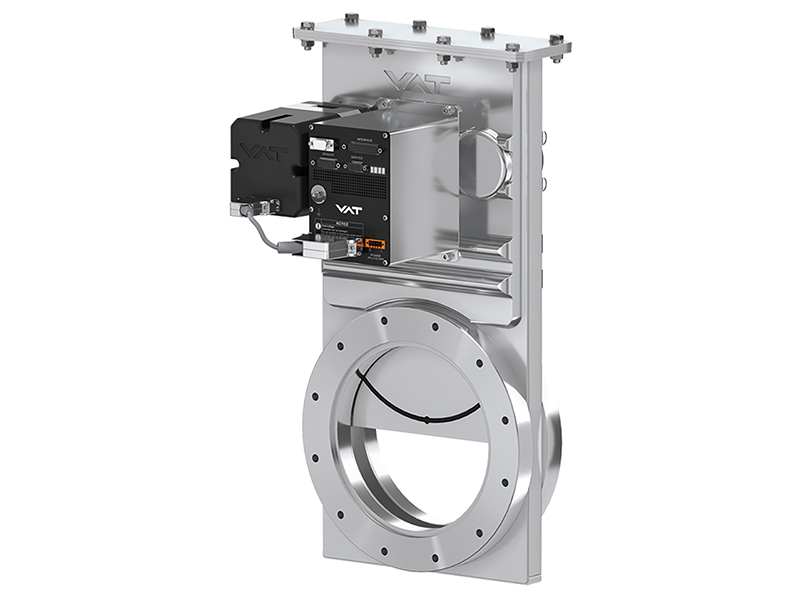

Motorized Actuation: For processes requiring intermediate flow control—such as pressure regulation in a sputtering chamber or gas flow ratio control in a CVD process—motorized actuators with position feedback provide proportional control. The butterfly valve's inherent flow characteristic (approximately equal percentage) provides good control authority over a wide range of flow rates.



Particle-Free Operation: Semiconductor manufacturing is exquisitely sensitive to particulate contamination. A single particle generated by a valve mechanism can land on a wafer and destroy an entire die. Our cleanroom-compatible valve series employs bellows-sealed shafts, low-friction polymer bearings that operate without grease, and actuator designs that isolate any sliding or wearing components from the vacuum envelope.









- ISO-KF (NW) flanges: DN10 through DN50, for small tubing and foreline applications.

- ISO-K (ISO-K) flanges: DN63 through DN250, the most common standard for general vacuum systems.

- CF (ConFlat) flanges: DN16 through DN200, the standard for UHV metal-seal systems.

- ISO-F (fixed flange) options for larger bore high-conductance requirements.



Every valve is individually helium leak tested and shipped with protective covers to prevent contamination during installation. Custom engineering is available for unique port configurations, integrated roughing ports, and specialized materials for exotic process chemistries.

When your vacuum process demands reliable, repeatable isolation and control, do not trust generic components. Partner with a vacuum valve specialist who understands the science behind the seal. Contact our technical team with your system requirements today.
